#include <ref_serial_data.hpp>

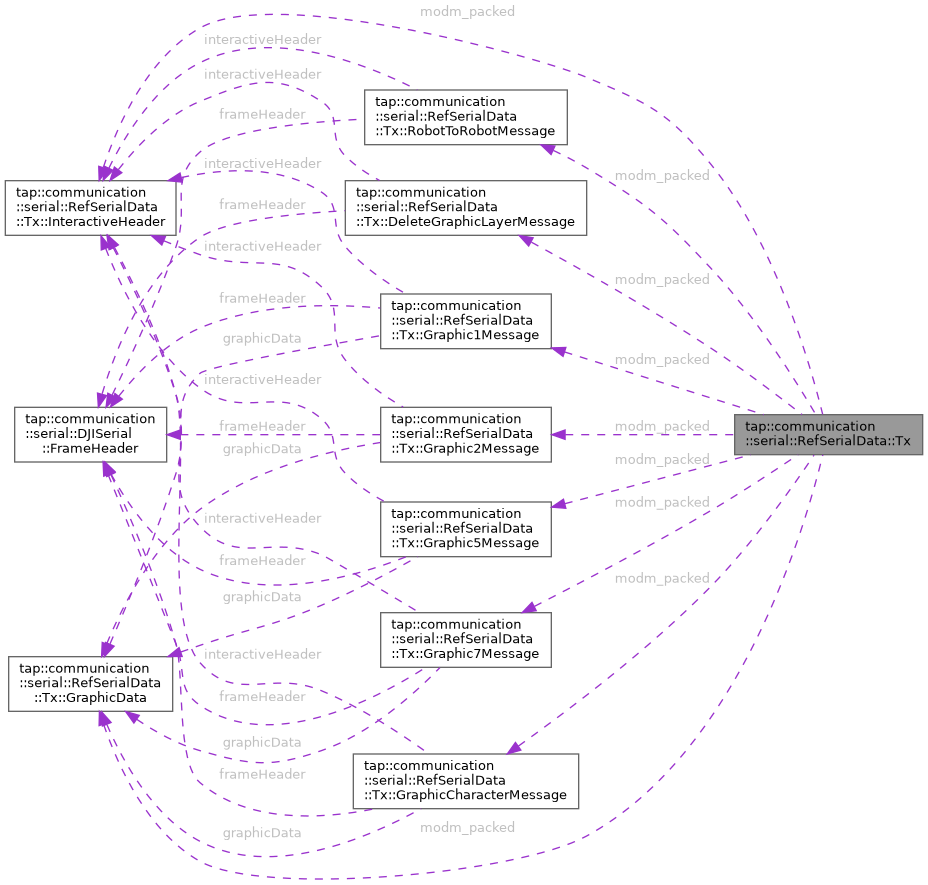

Collaboration diagram for tap::communication::serial::RefSerialData::Tx:

[legend]

Classes
struct	DeleteGraphicLayerMessage

struct	Graphic1Message

struct	Graphic2Message

struct	Graphic5Message

struct	Graphic7Message

struct	GraphicCharacterMessage

struct	GraphicData

struct	InteractiveHeader

struct	RobotToRobotMessage

Public Types
enum	DeleteGraphicOperation { DELETE_GRAPHIC_NO_OP = 0 , DELETE_GRAPHIC_LAYER = 1 , DELETE_ALL = 2 }

enum	GraphicOperation { GRAPHIC_NO_OP = 0 , GRAPHIC_ADD = 1 , GRAPHIC_MODIFY = 2 , GRAPHIC_DELETE = 3 }
	Graphic operations that can be passed in an add graphic operation. More...

enum class	GraphicType : uint8_t { STRAIGHT_LINE = 0 , RECTANGLE = 1 , CIRCLE = 2 , ELLIPSE = 3 , ARC = 4 , FLOATING_NUM = 5 , INTEGER = 6 , CHARACTER = 7 }
	The type of graphic being drawn (some geometry, or a string/number) More...

enum class	GraphicColor : uint8_t { RED_AND_BLUE = 0 , YELLOW = 1 , GREEN = 2 , ORANGE = 3 , PURPLISH_RED = 4 , PINK = 5 , CYAN = 6 , BLACK = 7 , WHITE = 8 }
	The color of the graphic being drawn. More...

Static Public Member Functions
template<typename T >
static constexpr uint32_t	getWaitTimeAfterGraphicSendMs (T *)

Public Attributes
struct tap::communication::serial::RefSerialData::Tx::InteractiveHeader	modm_packed

struct tap::communication::serial::RefSerialData::Tx::GraphicData	modm_packed

struct tap::communication::serial::RefSerialData::Tx::DeleteGraphicLayerMessage	modm_packed

struct tap::communication::serial::RefSerialData::Tx::Graphic1Message	modm_packed

struct tap::communication::serial::RefSerialData::Tx::RobotToRobotMessage	modm_packed

struct tap::communication::serial::RefSerialData::Tx::Graphic2Message	modm_packed

struct tap::communication::serial::RefSerialData::Tx::Graphic5Message	modm_packed

struct tap::communication::serial::RefSerialData::Tx::Graphic7Message	modm_packed

struct tap::communication::serial::RefSerialData::Tx::GraphicCharacterMessage	modm_packed

Static Public Attributes
static constexpr uint32_t	MAX_TRANSMIT_SPEED_BYTES_PER_S = 1000

Detailed Description

Contains enum and struct definitions specific to sending data to the referee serial class. Includes structure for sending different types of graphic messages.

Member Enumeration Documentation

◆ DeleteGraphicOperation

enum tap::communication::serial::RefSerialData::Tx::DeleteGraphicOperation

Graphic operations that can be passed to a delete graphic operation. Using this enum you can specify if you would like to delete a graphic layer (multiple graphics can be drawn on one of a number of layers) or delete all the graphics on the screen.

Enumerator
DELETE_GRAPHIC_NO_OP	Do nothing, no-op.
DELETE_GRAPHIC_LAYER	Delete a particular graphic layer (specified later on)
DELETE_ALL	Delete all graphic in all graphic layers.

◆ GraphicColor

enum class tap::communication::serial::RefSerialData::Tx::GraphicColor : uint8_t

strong

The color of the graphic being drawn.

Enumerator
RED_AND_BLUE
YELLOW
GREEN
ORANGE
PURPLISH_RED
PINK
CYAN
BLACK
WHITE

◆ GraphicOperation

enum tap::communication::serial::RefSerialData::Tx::GraphicOperation

Graphic operations that can be passed in an add graphic operation.

Enumerator
GRAPHIC_NO_OP	Do nothing, no-op.
GRAPHIC_ADD	Add a new graphic. If the graphic has a unique id not already registered with the UI, the graphic will be uniquely added, otherwise the graphic with the same graphic ID will be replaced. If you have a graphic that is already drawn that you want to change, you should use GRAPHIC_MODIFY instead
GRAPHIC_MODIFY	Modify an existing graphic (by graphic ID). The graphic must already exist for this to work properly.
GRAPHIC_DELETE	Delete a particular graphic.

◆ GraphicType

enum class tap::communication::serial::RefSerialData::Tx::GraphicType : uint8_t

strong

The type of graphic being drawn (some geometry, or a string/number)

Enumerator
STRAIGHT_LINE
RECTANGLE
CIRCLE
ELLIPSE
ARC
FLOATING_NUM
INTEGER
CHARACTER

Member Function Documentation

◆ getWaitTimeAfterGraphicSendMs()

template<typename T >

static constexpr uint32_t tap::communication::serial::RefSerialData::Tx::getWaitTimeAfterGraphicSendMs ( T * )

inlinestaticconstexpr

Get the min wait time after which you can send more data to the client. Sending faster than this time may cause dropped packets.

Pass a pointer to some graphic message. For example, if you have a Graphic1Message called msg, you can call getWaitTimeAfterGraphicSendMs(&msg).

Template Parameters

T	The type of the graphic message that was just been sent.

Todo:

Deprecated:

Member Data Documentation

◆ MAX_TRANSMIT_SPEED_BYTES_PER_S

constexpr uint32_t tap::communication::serial::RefSerialData::Tx::MAX_TRANSMIT_SPEED_BYTES_PER_S = 1000

staticconstexpr

You cannot send messages faster than this speed to the referee system.

Source: https://bbs.robomaster.com/forum.php?mod=viewthread&tid=9120

Changed from 1280 to 1000 as the HUD was still unreliable.

◆ modm_packed [1/9]

struct tap::communication::serial::RefSerialData::Tx::InteractiveHeader tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [2/9]

struct tap::communication::serial::RefSerialData::Tx::GraphicData tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [3/9]

struct tap::communication::serial::RefSerialData::Tx::DeleteGraphicLayerMessage tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [4/9]

struct tap::communication::serial::RefSerialData::Tx::Graphic1Message tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [5/9]

struct tap::communication::serial::RefSerialData::Tx::RobotToRobotMessage tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [6/9]

struct tap::communication::serial::RefSerialData::Tx::Graphic2Message tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [7/9]

struct tap::communication::serial::RefSerialData::Tx::Graphic5Message tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [8/9]

struct tap::communication::serial::RefSerialData::Tx::Graphic7Message tap::communication::serial::RefSerialData::Tx::modm_packed

◆ modm_packed [9/9]

struct tap::communication::serial::RefSerialData::Tx::GraphicCharacterMessage tap::communication::serial::RefSerialData::Tx::modm_packed

The documentation for this class was generated from the following file:

fang-mcb-project/taproot/src/tap/communication/serial/ref_serial_data.hpp
