tap::control::HoldRepeatCommandMapping Class Reference

#include <hold_repeat_command_mapping.hpp>

Inheritance diagram for tap::control::HoldRepeatCommandMapping:

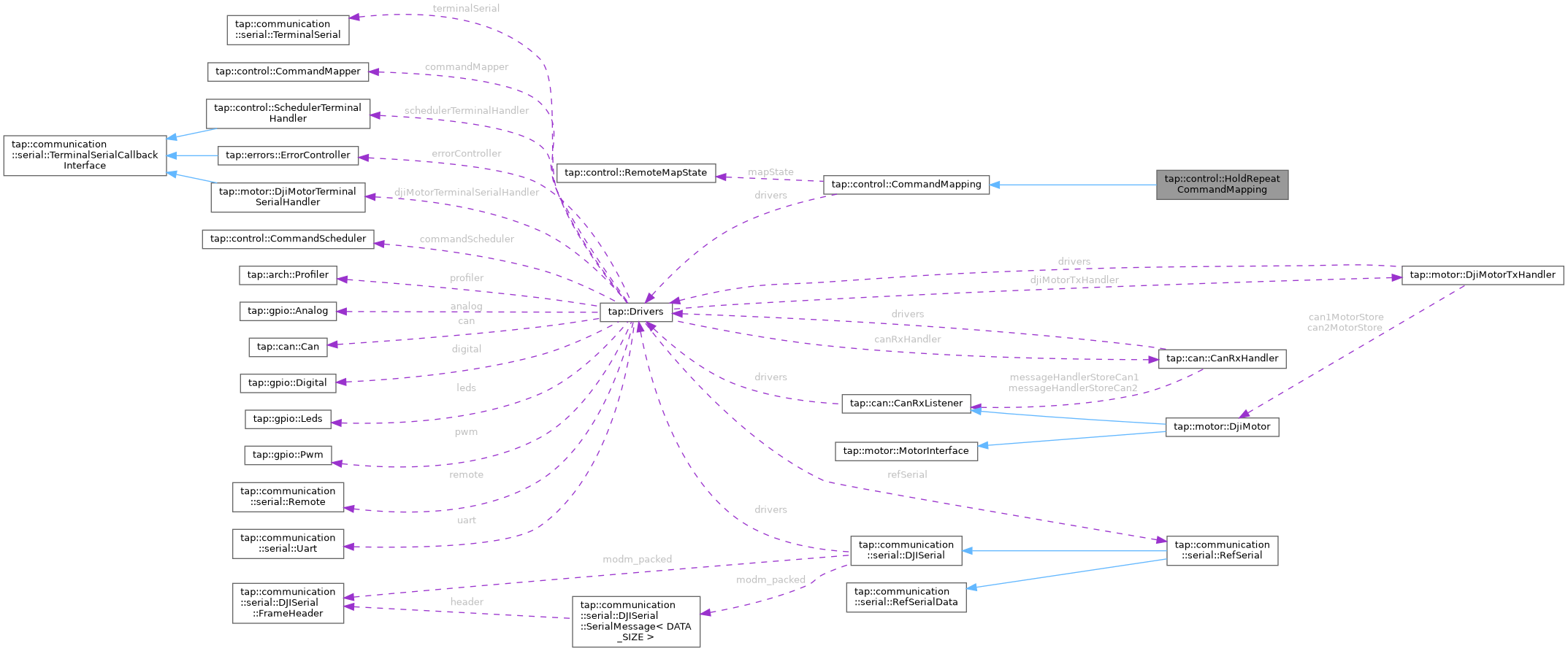

Collaboration diagram for tap::control::HoldRepeatCommandMapping:

Public Member Functions
	HoldRepeatCommandMapping (Drivers *drivers, const std::vector< Command * > cmds, const RemoteMapState &rms, bool endCommandsWhenNotHeld, int maxTimesToSchedule=-1)
	~HoldRepeatCommandMapping () override=default
void	executeCommandMapping (const RemoteMapState &currState) override
mockable void	setMaxTimesToSchedule (int maxTimes)
	Set the maximum times each of commands should be re-scheduled.
Public Member Functions inherited from tap::control::CommandMapping
	CommandMapping (Drivers *drivers, const std::vector< Command * > cmds, const RemoteMapState &rms)
virtual	~CommandMapping ()=default
virtual bool	mappingSubset (const RemoteMapState &mapState)
const RemoteMapState &	getAssociatedRemoteMapState () const
const std::vector< Command * > &	getAssociatedCommands () const

Protected Member Functions
void	incrementRescheduleCount (int cmdIndex)
bool	okToScheduleCommand (int cmdIndex) const
Protected Member Functions inherited from tap::control::CommandMapping
void	addCommands ()
void	removeCommands ()
bool	noCommandsScheduled () const

Protected Attributes
bool	held
bool	endCommandsWhenNotHeld
int	maxTimesToSchedule
std::vector< int >	rescheduleCounts
Protected Attributes inherited from tap::control::CommandMapping
const RemoteMapState	mapState
std::vector< Command * >	mappedCommands
Drivers *	drivers

Additional Inherited Members
Static Public Member Functions inherited from tap::control::CommandMapping
static bool	negKeysSubset (const RemoteMapState &state1, const RemoteMapState &state2)

Detailed Description

A CommandMapping that adds Commands when the contained mapping is a subset of the remote mapping. If a Command finishes and the contained mapping is still a subset of the remote mapping, it is added again. It then removes the Commands when the mapping is no longer a subset if endCommandsWhenNotHeld is true, or doesn't end commands if endCommandsWhenNotHeld is false. Furthermore, will stop scheduling commands if maxTimesToSchedule is not -1 after the command has been added to the scheduler maxTimesToSchedule.

Additionally, When neg keys are being used and the mapping's neg keys are a subset of the remote map state, the Commands are removed.

Constructor & Destructor Documentation

HoldRepeatCommandMapping()

tap::control::HoldRepeatCommandMapping::HoldRepeatCommandMapping ( Drivers *  drivers, const std::vector< Command * >  cmds, const RemoteMapState &  rms, bool  endCommandsWhenNotHeld, int  maxTimesToSchedule = -1  )

inline

Constructor must take the set of Commands and the RemoteMapState.

Parameters

[in]	drivers	Global drivers instance.
[in]	cmds	vector of commands that will be scheduled by this command mapping.
[in]	rms	RemoteMapState that controls when commands will be scheduled.
[in]	endCommandsWhenNotHeld	If true, the commands will be forcibly ended by the command mapping when no longer being held. Otherwise, the commands will naturally finish.
[in]	maxTimesToSchedule	Number of times to reschedule each of the commands. If -1 is passed in, the command mapping will continue to reschedule the commands forever. If there are multiple commands that have the potential to end, each command will be scheduled maxTimesToSchedule.

~HoldRepeatCommandMapping()

tap::control::HoldRepeatCommandMapping::~HoldRepeatCommandMapping ( )

overridedefault

Default destructor.

Member Function Documentation

executeCommandMapping()

void tap::control::HoldRepeatCommandMapping::executeCommandMapping ( const RemoteMapState &  currState )

overridevirtual

Using currState, determines whether or not to add or remove Commands from the main scheduler. Up the the implementer to determine what the criteria for adding and removing Commands should be.

Parameters

[in]

currState

The current state of the remote.

Implements tap::control::CommandMapping.

incrementRescheduleCount()

void tap::control::HoldRepeatCommandMapping::incrementRescheduleCount ( int  cmdIndex )

inlineprotected

okToScheduleCommand()

bool tap::control::HoldRepeatCommandMapping::okToScheduleCommand ( int  cmdIndex ) const

inlineprotected

setMaxTimesToSchedule()

mockable void tap::control::HoldRepeatCommandMapping::setMaxTimesToSchedule ( int  maxTimes )

inline

Set the maximum times each of commands should be re-scheduled.

Member Data Documentation

endCommandsWhenNotHeld

bool tap::control::HoldRepeatCommandMapping::endCommandsWhenNotHeld

protected

held

bool tap::control::HoldRepeatCommandMapping::held

protected

maxTimesToSchedule

int tap::control::HoldRepeatCommandMapping::maxTimesToSchedule

protected

rescheduleCounts

std::vector<int> tap::control::HoldRepeatCommandMapping::rescheduleCounts

protected

---

The documentation for this class was generated from the following files:

• fang-mcb-project/taproot/src/tap/control/hold_repeat_command_mapping.hpp
• fang-mcb-project/taproot/src/tap/control/hold_repeat_command_mapping.cpp
