tap::control::CommandMapping Class Reference

#include <command_mapping.hpp>

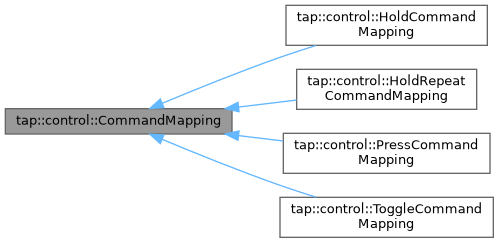

Inheritance diagram for tap::control::CommandMapping:

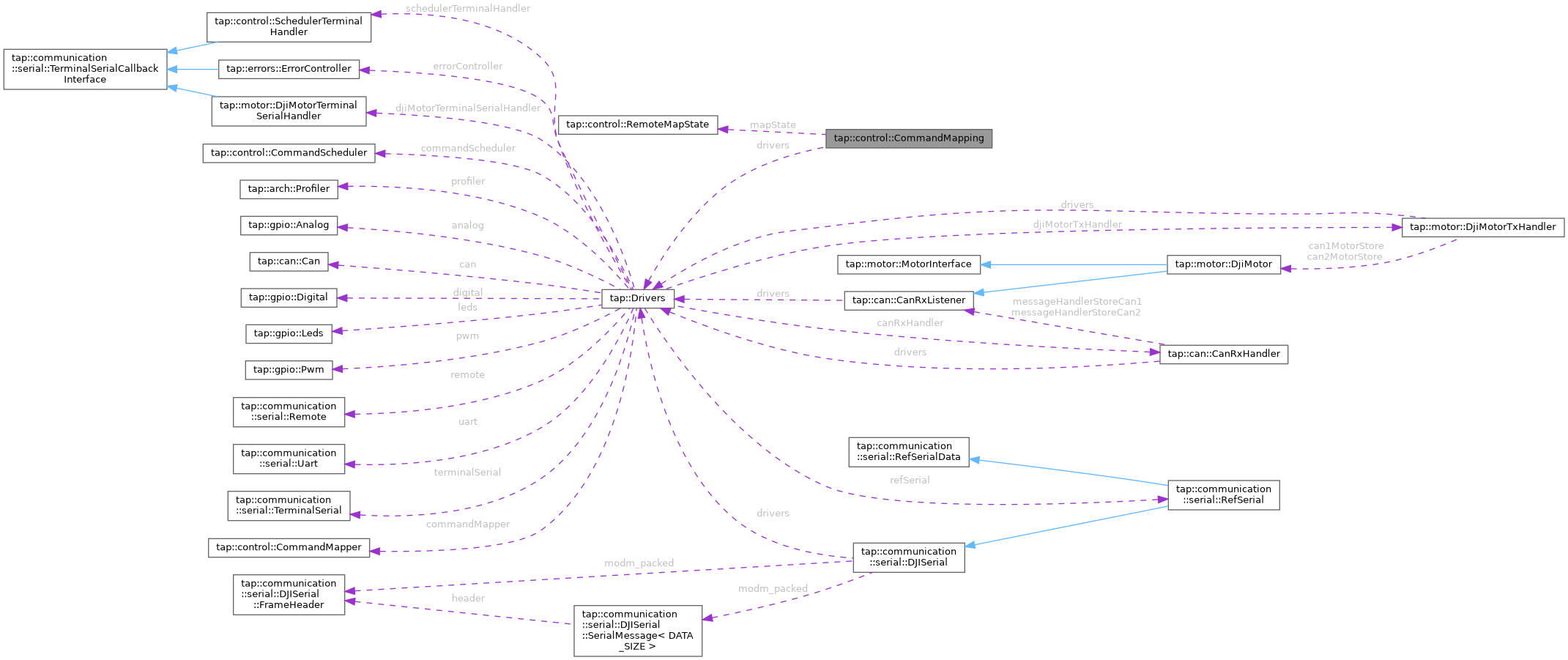

Collaboration diagram for tap::control::CommandMapping:

Public Member Functions
	CommandMapping (Drivers *drivers, const std::vector< Command * > cmds, const RemoteMapState &rms)
virtual	~CommandMapping ()=default
virtual void	executeCommandMapping (const RemoteMapState &currState)=0
virtual bool	mappingSubset (const RemoteMapState &mapState)
const RemoteMapState &	getAssociatedRemoteMapState () const
const std::vector< Command * > &	getAssociatedCommands () const

Static Public Member Functions
static bool	negKeysSubset (const RemoteMapState &state1, const RemoteMapState &state2)

Protected Member Functions
void	addCommands ()
void	removeCommands ()
bool	noCommandsScheduled () const

Protected Attributes
const RemoteMapState	mapState
std::vector< Command * >	mappedCommands
Drivers *	drivers

Friends
bool	operator== (const CommandMapping &cm1, const CommandMapping &cm2)
bool	mapStateEqual (const CommandMapping &cm1, const CommandMapping &cm2)

Detailed Description

A class that combines a vector of Commands and a RemoteMapState whose behavior is defined by derived classes. Used in conjunction with the CommandMapper to add and remove Commands from the scheduler when the derived CommandMapping sees fit, depending on the current state of the remote data.

See also

HoldCommandMapping

HoldRepeatCommandMapping

PressCommandMapping

ToggleCommandMapping

Constructor & Destructor Documentation

CommandMapping()

tap::control::CommandMapping::CommandMapping	(	Drivers *	drivers,
		const std::vector< Command * >	cmds,
		const RemoteMapState &	rms
	)

Initializes the CommandMapping with the set of passed in Commands mapped to a particular RemoteMapState.

Note

All nullptr Commands in cmds will be removed.

Parameters

[in]	cmds	A list of Commands that are associated with the mapping.
[in]	rms	The map state that will be compared to the actual remote state to determine whether or not to add cmds.

~CommandMapping()

virtual tap::control::CommandMapping::~CommandMapping ( )

virtualdefault

Nothing dynamically allocated that isn't taken care of automatically.

Member Function Documentation

addCommands()

void tap::control::CommandMapping::addCommands ( )

protected

Adds all the Commands to the main CommandScheduler.

executeCommandMapping()

virtual void tap::control::CommandMapping::executeCommandMapping ( const RemoteMapState &  currState )

pure virtual

Using currState, determines whether or not to add or remove Commands from the main scheduler. Up the the implementer to determine what the criteria for adding and removing Commands should be.

Parameters

[in]

currState

The current state of the remote.

Implemented in tap::control::HoldCommandMapping, tap::control::HoldRepeatCommandMapping, tap::control::PressCommandMapping, and tap::control::ToggleCommandMapping.

getAssociatedCommands()

const std::vector< Command * > & tap::control::CommandMapping::getAssociatedCommands ( ) const

inline

getAssociatedRemoteMapState()

const RemoteMapState & tap::control::CommandMapping::getAssociatedRemoteMapState ( ) const

inline

mappingSubset()

bool tap::control::CommandMapping::mappingSubset ( const RemoteMapState &  mapState )

virtual

Returns

true if this's mapState is a subset of the passed in mapState. Returns false otherwise.

negKeysSubset()

static bool tap::control::CommandMapping::negKeysSubset ( const RemoteMapState &  state1, const RemoteMapState &  state2  )

inlinestatic

Returns

true if state1's neg keys are a subset of state2's keys pressed, false otherwise.

noCommandsScheduled()

bool tap::control::CommandMapping::noCommandsScheduled ( ) const

protected

Returns

True if none of the associated commands are scheduled.

removeCommands()

void tap::control::CommandMapping::removeCommands ( )

protected

Removes all the Commands from the main CommandScheduler.

Friends And Related Symbol Documentation

mapStateEqual

bool mapStateEqual ( const CommandMapping &  cm1, const CommandMapping &  cm2  )

friend

Checks for equality between the mapStates of cm1 and cm2.

operator==

bool operator== ( const CommandMapping &  cm1, const CommandMapping &  cm2  )

friend

Straight equality of the mapState and mappedCommands between cm1 and cm2.

Member Data Documentation

drivers

Drivers* tap::control::CommandMapping::drivers

protected

mappedCommands

std::vector<Command *> tap::control::CommandMapping::mappedCommands

protected

A map of commands to add to and remove from the scheduler.

mapState

const RemoteMapState tap::control::CommandMapping::mapState

protected

The RemoteMapState specified when constructing the CommandMapping.

---

The documentation for this class was generated from the following files:

• fang-mcb-project/taproot/src/tap/control/command_mapping.hpp
• fang-mcb-project/taproot/src/tap/control/command_mapping.cpp
